Your 700R4 transmission is a workhorse, but its health depends on a component many overlook: the oil pan. It’s not just a fluid reservoir; it’s a critical player in cooling, debris management, and overall durability. Choosing the wrong one can lead to overheating, leaks, and premature wear.
I’m Mohammad Maruf — the founder and writer behind KitchPrep. With over 15 years of experience analyzing mechanical components, I specialize in deep market research and evaluating technical specifications to cut through the marketing and identify what truly works.
This guide strips away the confusion, comparing materials, designs, and real-user feedback to help you make a confident choice. For long-term reliability and peak performance, investing in the best 700r4 transmission pan is a non-negotiable upgrade for any serious builder.
How To Choose The Best 700R4 Transmission Pan
Replacing your transmission pan is a strategic upgrade, not just a repair. The right choice enhances cooling, simplifies maintenance, and protects your investment. Focus on these core aspects to navigate your options.
Material and Construction
Stamped steel pans are common and budget-friendly, offering solid durability for daily use. Cast aluminum pans, often seen in mid-range and premium options, provide superior heat dissipation due to aluminum’s thermal properties and are typically thicker, reducing the risk of warping or damage from road debris.
Cooling Design
Fins on an aluminum pan aren’t just for looks; they significantly increase surface area, allowing more heat to radiate away from the transmission fluid. This is a key upgrade for vehicles used for towing, performance driving, or in hot climates to prevent fluid breakdown.
Fitment and Capacity
Always double-check compatibility with your specific transmission model (700R4, 4L60E, 4L65E). Pan depth is crucial—a deeper pan can hold more fluid for additional cooling capacity, but it may require a correspondingly longer filter snout to avoid fluid starvation.
Drain Plug and Hardware
A built-in drain plug is a non-negotiable feature for anyone who values easy maintenance. It allows for clean fluid changes without dropping the entire pan. Also, assess the included hardware; some kits come with bolts that are too short for use with thicker gaskets or aluminum flanges.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Type | Best For | Key Feature | Amazon |
|---|---|---|---|---|
| A-Premium Plated Finned Aluminum | Aluminum | Performance & cooling upgrades | Plated finish, includes full kit | AmazonCheck Price |
| JEGS Aluminum for 700-R4 | Aluminum | Enhanced cooling & style | Black finned, 3.25″ depth | AmazonCheck Price |
| Speedway Motors GM 700R4 | Aluminum | Balanced upgrade | Polished fins, complete kit | AmazonCheck Price |
| Transmission Oil Pan w/ Drain Plug | Steel | Direct OEM replacement | Includes gasket & bolts | AmazonCheck Price |
| JEGS Aluminum for TH350 | Aluminum | TH350 transmission builds | Black finned, complete kit | AmazonCheck Price |
| Speedway Motors GM TH400 | Aluminum | TH400 transmission upgrades | Polished, uses stock filter | AmazonCheck Price |
| Speedmaster PCE221.1024 | Aluminum | Extra capacity for TH350 | Deeper sump, drain plug | AmazonCheck Price |
| A-Premium Transmission Oil Pan | Steel | Reliable daily driver fix | Corrosion-resistant, includes plug | AmazonCheck Price |
| CFR Performance Steel Pan | Steel | Budget-friendly replacement | Finned design, drain plug | AmazonCheck Price |
| ATP Automotive Graywerks | Steel | OEM-spec repair | Heavy-gauge materials | AmazonCheck Price |
| ATS Diesel Transmission Pan | Aluminum | Heavy-duty performance | Substantial capacity, includes extender | AmazonCheck Price |
In‑Depth Reviews
1. A-Premium Plated Finned Aluminum Transmission Oil Pan
Check Latest PriceThis plated, finned aluminum pan strikes an ideal balance between premium cooling performance and practical value for 700R4/4L60E transmissions. It comes as a complete kit, ready for installation.
The aluminum construction provides excellent heat dissipation, and the fins actively radiate heat away from the transmission fluid. User feedback highlights its sturdier build compared to stock, making it a favorite for off-road or high-stress use. Several notes mention that while the included rubber gasket can be prone to squeezing out, sealing perfectly with a quality cork gasket or sealant.
For builders seeking a reliable cooling upgrade without stepping into the ultra-premium tier, this pan delivers exceptional functionality and a clean, finished look under the vehicle.
Why it’s great
- Superior aluminum construction with cooling fins.
- Comes with drain plug, bolts, and a gasket for a complete install.
- Offers a noticeable upgrade in rigidity and heat management over stock.
Good to know
- The included rubber gasket may not seal optimally for all users; a cork gasket is often recommended.
- Some users recommend sourcing slightly longer bolts for a secure fit with thicker gaskets.

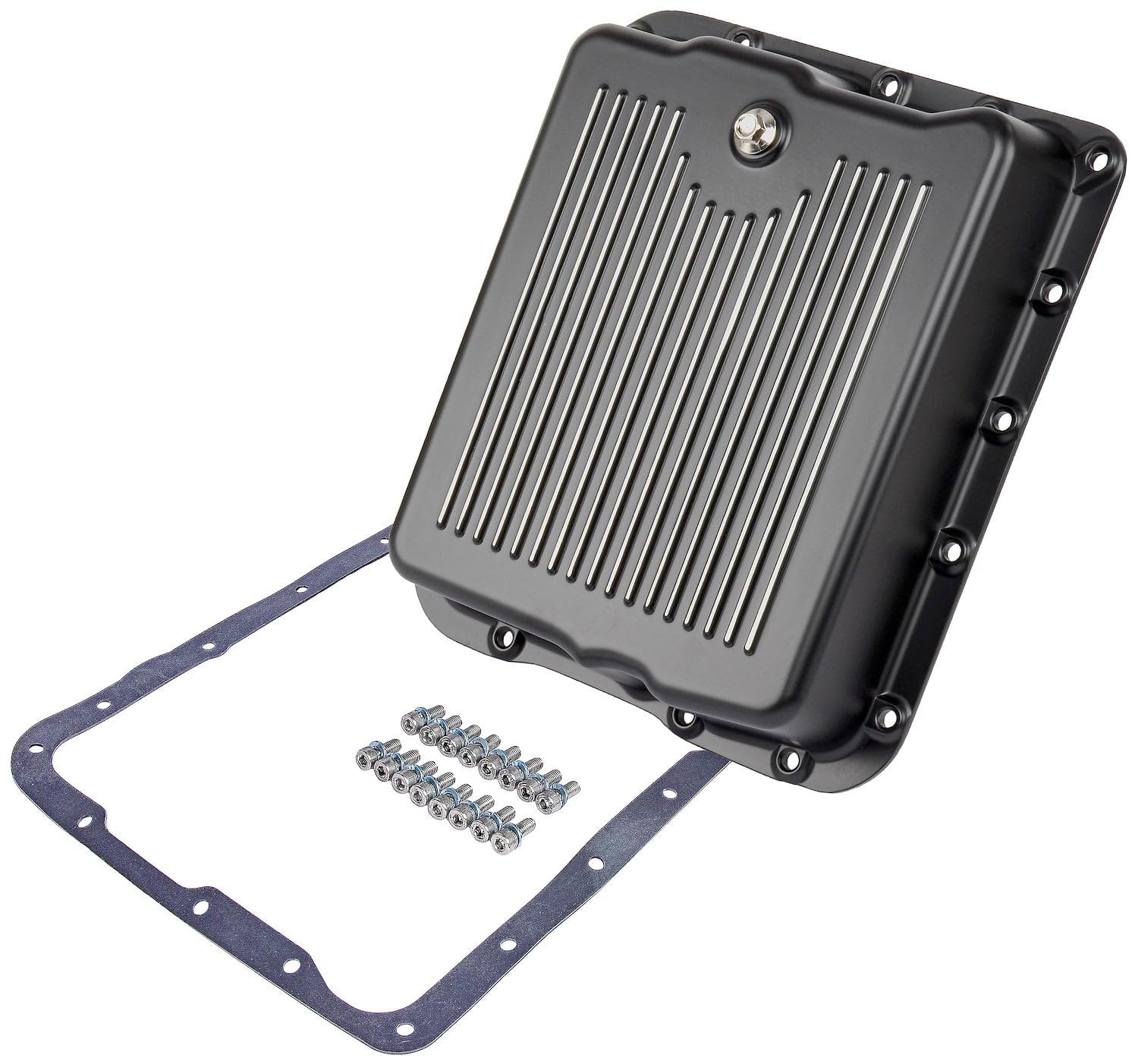

2. JEGS Aluminum Transmission Pan for GM 700-R4
Check Latest PriceJEGS brings its performance heritage to this deep, black-finned aluminum pan, designed for those who want maximum cooling capacity and a stealthy aesthetic for their 700-R4 or 4L60.
With an overall depth of 3.25 inches, this pan holds additional fluid, which aids in temperature management. The fins are substantial and designed for effective heat rejection. Users have successfully used it to replace leaky stock pans, appreciating the included drain plug. A key point from reviews is that this depth does not automatically accommodate a “deep pan” filter—the internal clearance may require a standard filter, so verification is needed.
If your goal is aggressive cooling and you prefer a low-gloss black finish, this JEGS pan is a robust, performance-oriented choice.
Why it’s great
- Increased fluid capacity from the deeper design enhances cooling.
- Aggressive black finned finish is both functional and stylish.
- Includes all necessary hardware for installation.
Good to know
- The interior may not clear a deep pan filter; confirm filter compatibility.
- The gasket surface is as-cast, so careful gasket selection and installation is crucial.
3. Speedway Motors GM 700R4 Polished Finned Aluminum Pan
Check Latest PriceSpeedway Motors offers a polished aluminum pan that combines effective cooling with a show-quality finish, making it a great dual-purpose upgrade for street-driven vehicles.
This pan is noted for its good casting quality and includes a drain plug, bolts, and a rubber gasket. The polished fins not only look great but work to lower transmission temperatures. It’s slightly deeper than stock, which reviewers found beneficial for cooling. A common and important tip from experienced users is to pair it with a filter designed for deeper pans, such as the TCI racing filter, to avoid any risk of fluid pickup issues.
For the enthusiast who wants their engine bay to shine while gaining real cooling benefits, this pan represents a solid mid-range investment.
Why it’s great
- Attractive polished finish with functional cooling fins.
- Comes as a

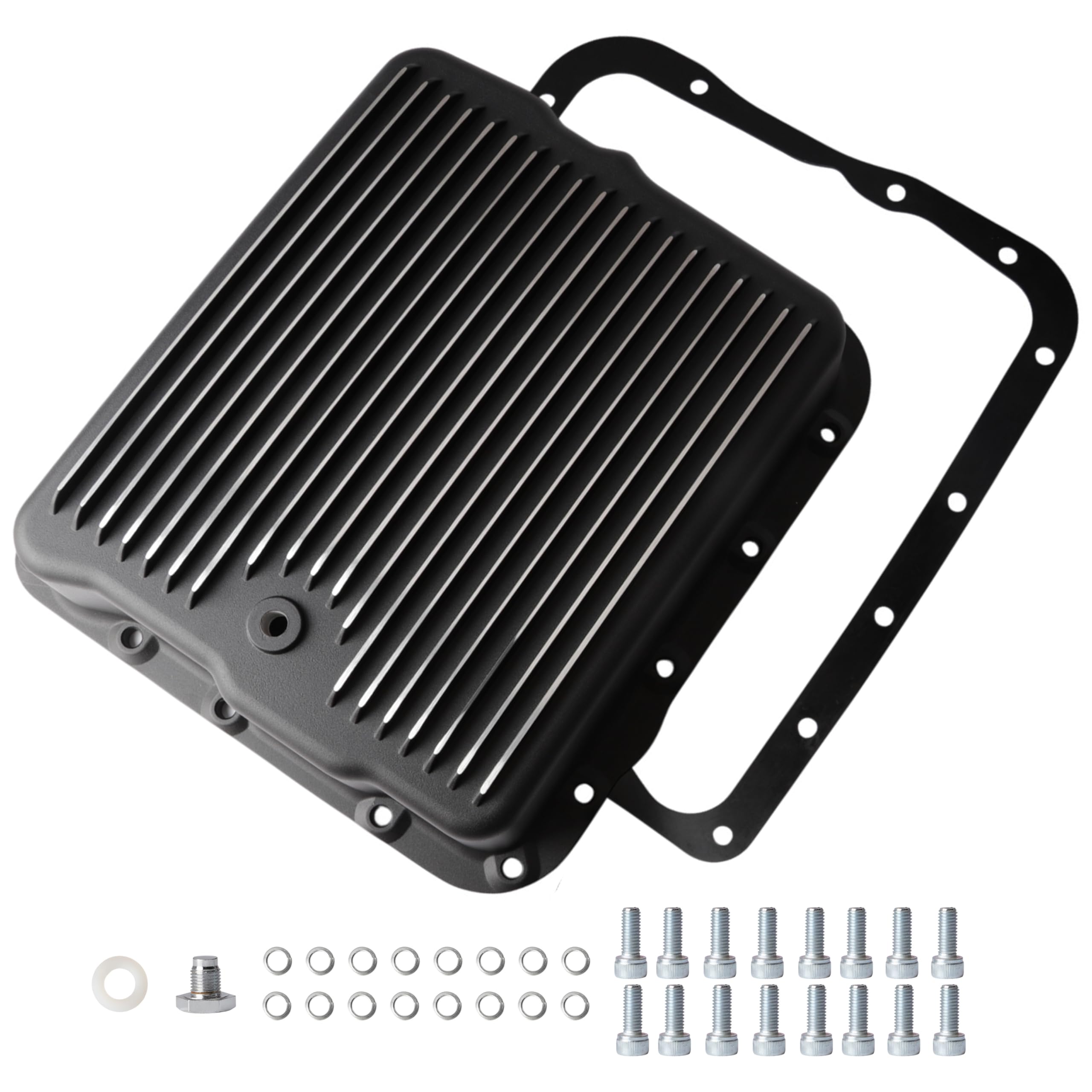

4. Transmission Oil Pan with Drain Plug for GM 700R4
Check Latest PriceThis steel pan serves as a direct, no-fuss replacement for the OEM pan on 700R4, 4L60, and 4L60E transmissions, coming with the essential hardware including a welcome drain plug.
Constructed from durable steel, it’s built to withstand daily use and provides a solid sealing surface. Users report it fits well and has a thick material gauge. However, a recurring theme in feedback is that the included Allen-head bolts can be too short, especially when used with the provided gasket and washers, potentially leading to stripped threads or an insecure seal. Several users solved this by sourcing slightly longer bolts.
If you need a straightforward, reliable replacement that adds the convenience of a drain plug, this pan is a competent choice, but be prepared to potentially upgrade the mounting hardware.
Why it’s great
- Direct-fit steel replacement that includes a drain plug for easier maintenance.
- Comes with a gasket and bolts, offering a complete package for the repair.
- Noted for its solid construction and good fitment.
Good to know
- The included bolts are frequently reported as being too short for a proper, secure fit.
- The supplied rubber gasket may not seal as reliably as a quality cork alternative for some users.

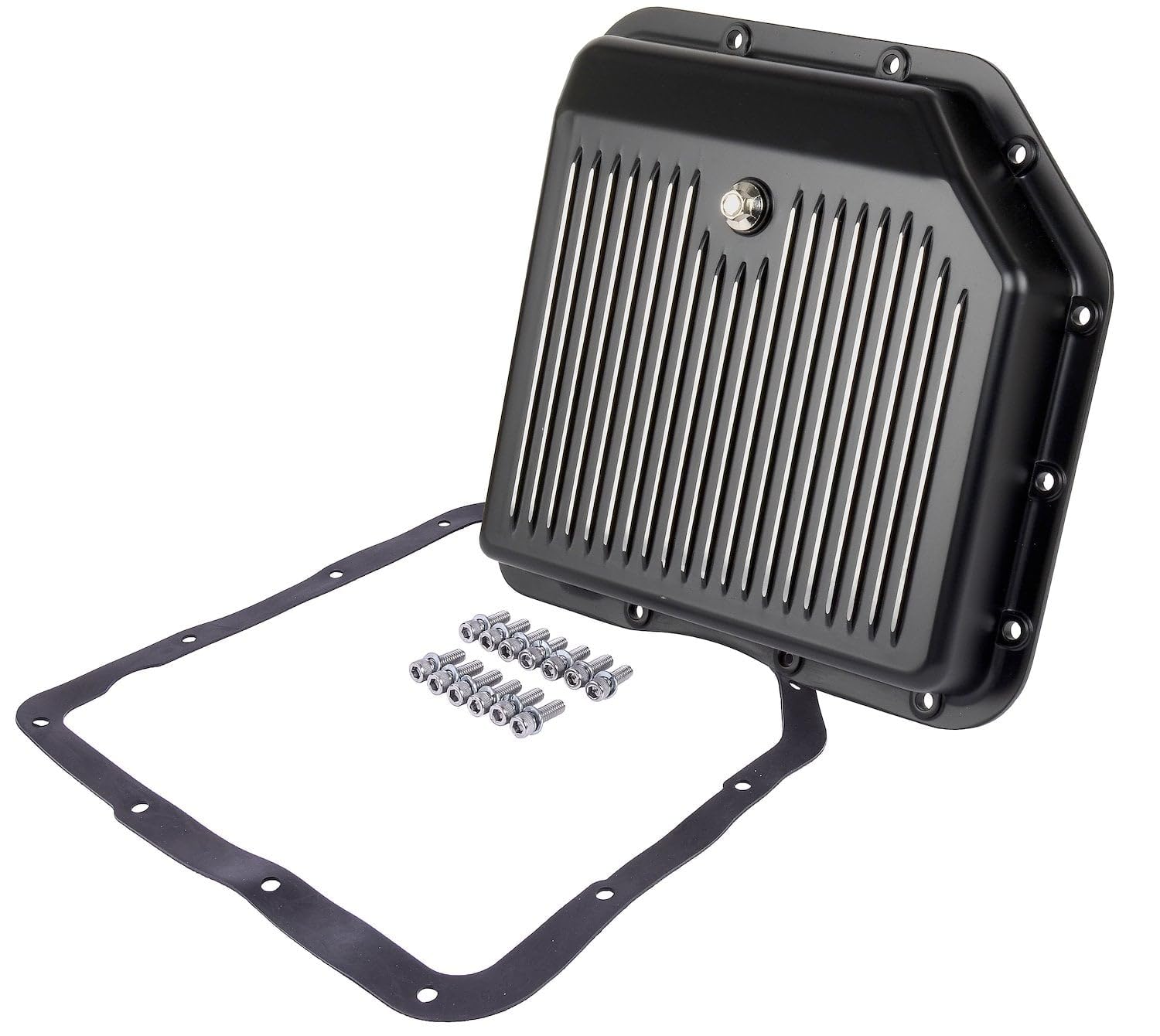

5. JEGS Aluminum Transmission Oil Pan for TH350
Check Latest PriceDesigned specifically for GM TH350 transmissions, this JEGS aluminum pan brings enhanced cooling and a sharp black-finned aesthetic to a classic performance transmission.
The finned design effectively increases surface area for better heat dissipation. The kit’s completeness is a major plus, including the pan, drain plug, gasket, and hardware. Users find the quality to be generally good, though some note the included cork gasket may have slightly undersized holes that need minor trimming. As with several aluminum pans, attention to bolt length is advised during installation to ensure proper torque.
For TH350 owners looking to upgrade from a stock steel pan, this JEGS unit offers proven performance, a clean look, and the convenience of a one-box solution.
Why it’s great
- Targeted fit and performance upgrade for popular TH350 transmissions.
- Attractive black finned finish that looks great in any engine bay.
- Comes as a complete kit, simplifying the purchase and install process.
Good to know
- Quality control on the gasket can be inconsistent, sometimes requiring adjustment.
- As with many aluminum pans, verifying bolt length for a secure seal is a wise pre-installation step.
6. Speedway Motors GM TH400 Polished Aluminum Pan
Check Latest PriceThis polished aluminum pan is engineered as a direct, performance-oriented replacement for the robust TH400 automatic transmission, maintaining stock fluid capacity while improving cooling.
A key advantage is its compatibility with the stock transmission fluid filter, making it a true plug-and-play upgrade. The casting is generally heavy and well-made, though some users mention needing to clean up minor burrs or flashing around the bolt holes for a perfect gasket seal. The included socket-head bolts provide a clean installation look.
For TH400 applications where reliability and extra cooling are paramount, this Speedway Motors pan is a smart upgrade that doesn’t complicate the filter system.
Why it’s great
- Designed to work with the stock TH400 filter, ensuring proper fluid pickup.
- Heavy-duty aluminum construction with a show-quality polished finish.
- Includes high-quality socket-head bolts for a professional installation.
Good to know
- Some light finishing work (sanding burrs) may be needed for an optimal gasket surface.
- Packaging issues have occasionally led to missing hardware, though sellers are responsive.

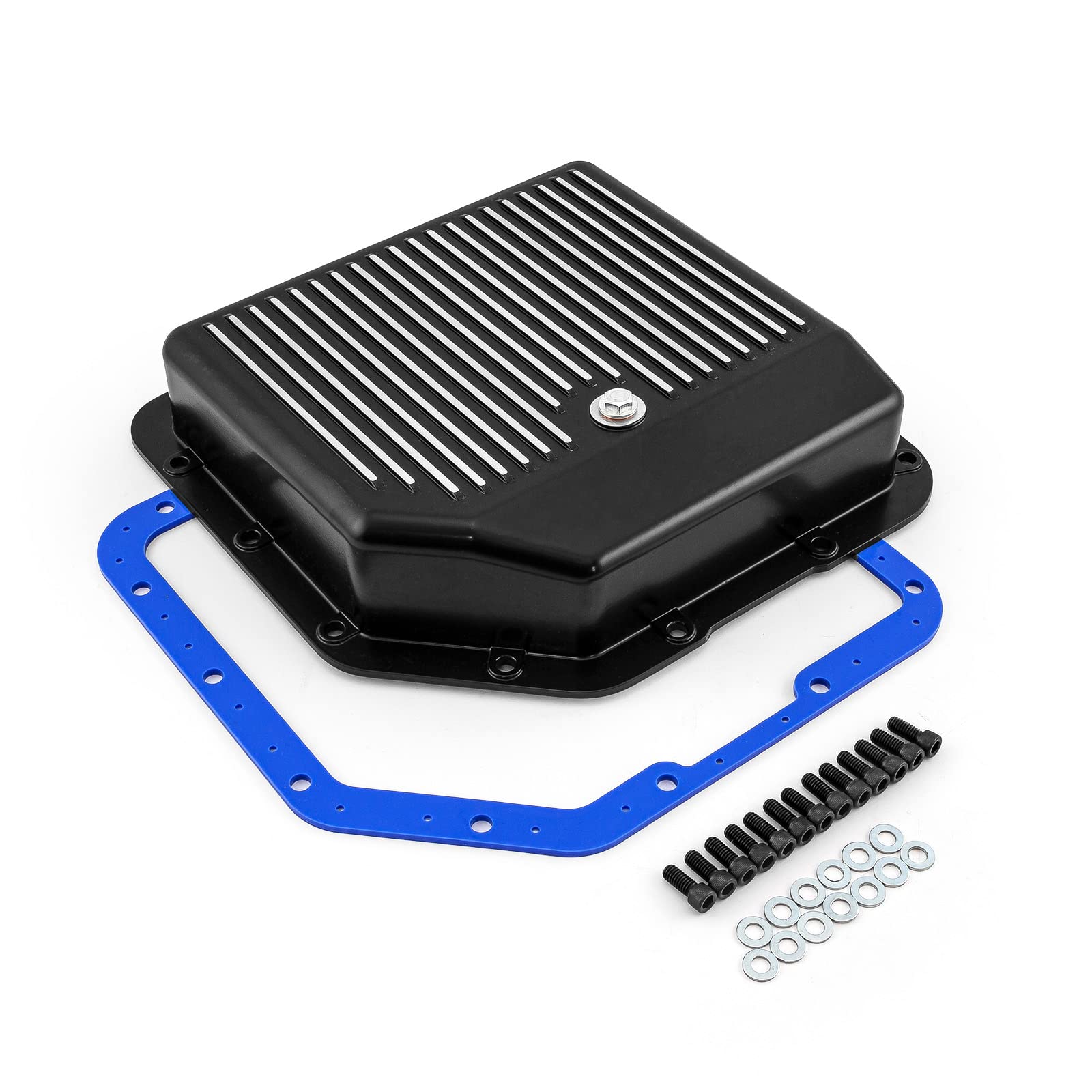

7. Speedmaster Extra Capacity Aluminum Pan for TH350
Check Latest PriceThe Speedmaster pan offers a deeper sump design for TH350 transmissions, providing increased fluid capacity for better thermal management in demanding situations.
The extra volume is its primary selling point, and the inclusion of a drain plug makes fluid changes much cleaner. User experiences are mixed; some praise its value and the quality of the included thick gasket, while others caution that the aluminum can be thin in spots and the provided bolts are universally considered too short, necessitating longer replacements and often a filter extension.
This pan is best suited for builders who need the additional capacity and are willing to source the correct longer hardware and potentially a filter extension to complete the installation correctly.
Why it’s great
- Increased fluid capacity aids in cooling for high-stress or performance use.
- Comes with a robust rubber gasket that seals effectively when installed properly.
- Features a convenient drain plug.
Good to know
- The included bolts are almost always too short; longer bolts are a mandatory purchase.
- Construction quality can be inconsistent; some users report thin areas prone to cracking.

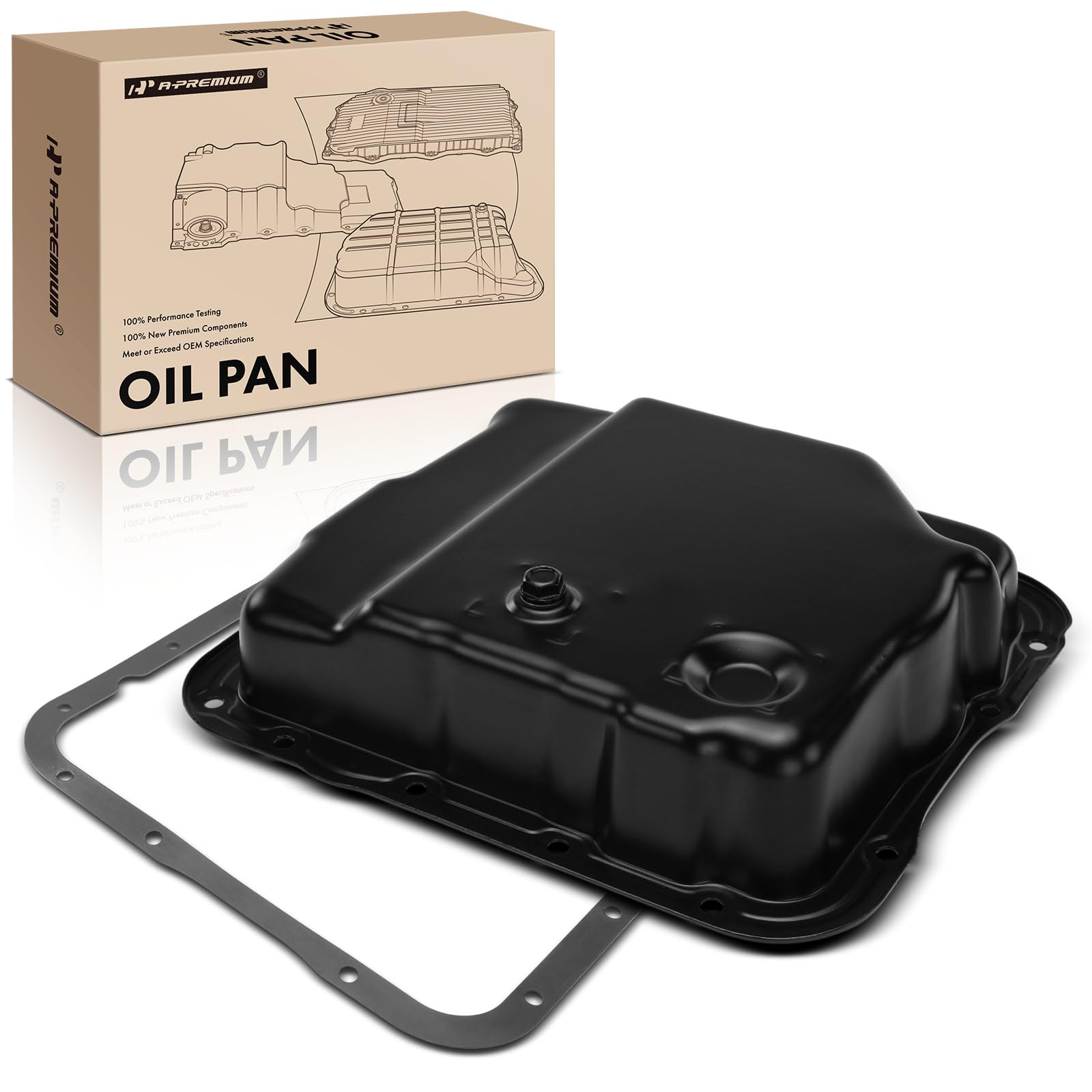

8. A-Premium Transmission Oil Pan for 4L60-E
Check Latest PriceThis steel pan from A-Premium is designed as a comprehensive replacement for a wide range of GM trucks and SUVs equipped with the 4L60-E, 4L65-E, and 4L70-E transmissions.
Its main appeal is broad vehicle compatibility and the inclusion of a drain plug, which many original pans lacked. Users confirm it fits well in most listed applications, though careful verification for specific models like the Astro Van is crucial due to slight shape differences. The steel construction is corrosion-resistant and durable for daily use.
If you’re replacing a leaky or damaged stock pan on a daily driver and want the bonus of a drain plug, this A-Premium option offers reliable performance and good coverage for many popular vehicles.
Why it’s great
- Extensive vehicle compatibility list for many GM trucks and SUVs.
- Includes a drain plug, a valuable upgrade over many stock pans.
- Offers a one-year warranty for added purchase confidence.
Good to know
- Fitment is not universal for every vehicle on the list; always double-check for your specific model.
- Does not include a transmission filter or magnet; these must be purchased separately.
9. CFR Performance Steel Finned Pan for 700R4/4L60E
Check Latest PriceThe CFR Performance pan is a cost-effective entry-level upgrade, providing a finned steel design and a drain plug for 700R4, 4L60E, and 4L65E transmissions.
For an entry-level price, you get a pan that is notably thicker than cheap stamped units and includes the highly desirable drain plug. User reviews are overwhelmingly positive regarding fit and finish, with many noting it bolts on without leaks and eliminates the mess of fluid changes. The fins, while less effective than aluminum, still provide some additional cooling surface.
If you need a durable, functional replacement with a drain plug and a slight cooling benefit without the cost of aluminum, this CFR pan represents outstanding value.
Why it’s great
- Excellent value, offering a robust steel pan with a drain plug.
- Finned design provides some cooling benefit over a smooth stock pan.
- Consistently praised for perfect fitment and leak-free installation.
Good to know
- Steel does not dissipate heat as efficiently as aluminum.
- Stock fluid capacity; does not offer increased volume for cooling.
10. ATP Automotive Graywerks Transmission Oil Pan
Check Latest PriceThe ATP Automotive pan is a professional-grade, OEM-specification replacement built to match the original equipment in material, capacity, and fit for 4L60-E and 700R4 transmissions.
This is the pan you choose when the goal is a like-for-like repair with trusted quality. It uses heavy-gauge materials and a corrosion-resistant coating for long-term durability. It is designed to restore original function, protecting fluid from contaminants and providing proper oil control. It does not include a drain plug.
For restorations, precise repairs, or any situation where maintaining original specifications is the priority, this ATP pan is the definitive choice for a reliable, no-surprises installation.
Why it’s great
- Manufactured to exact OE specifications for a guaranteed fit and function.
- Uses heavy-gauge steel with anti-corrosion coating for maximum longevity.
- A trusted brand in professional automotive repair.
Good to know
- Lacks a drain plug, so fluid changes will be messier than with aftermarket options.
- Purely a functional replacement without cooling or capacity upgrades.
11. ATS Diesel Performance Transmission Pan
Check Latest PriceThe ATS Diesel pan is the undisputed heavyweight champion, a premium, high-capacity aluminum pan built for extreme duty, towing, and performance applications where transmission temperature is the primary enemy.
This is a serious piece of engineering. It adds over a gallon of fluid capacity, dramatically increasing thermal mass and cooling potential. It comes with a necessary filter extension to ensure proper oil pickup. Users report flawless installation, exceptional build quality, and significant drops in operating temperatures. Note that it is pre-drilled for a temperature sensor and may require one for installation.
For those running heavy loads, high horsepower, or just demanding absolute maximum cooling and durability, this ATS pan is the ultimate investment in transmission longevity.
Why it’s great
- Massive fluid capacity provides the best possible cooling for severe duty cycles.
- Includes a filter extension to ensure safe operation with the deeper sump.
- Extremely robust construction from a renowned performance manufacturer.
Good to know
- Positioned at the premium end of the market, representing a significant investment.
- Designed with a port for a temperature sensor, which may be required for installation if not already equipped.
Understanding the Specs
Material: Steel vs. Aluminum
Stamped steel pans are cost-effective and durable for everyday use. Cast aluminum pans are more expensive but offer superior heat dissipation due to aluminum’s thermal conductivity; the fins further increase surface area for radiative cooling, making them ideal for performance or high-stress applications.
Pan Depth & Filter Compatibility
A deeper pan holds more fluid, which helps stabilize temperatures. However, increasing depth changes the fluid dynamics. Always verify that your transmission filter has a long enough pickup tube (or “snout”) to reach the fluid in the new pan. Using a standard filter in a deep pan can cause fluid starvation and catastrophic damage.
The Drain Plug Imperative
A drain plug transforms maintenance from a messy, multi-hour job into a clean, 15-minute task. It allows you to drain old fluid without disturbing the gasket seal or having fluid pour over components. This single feature is worth prioritizing for any vehicle you plan to keep long-term.
Gasket and Hardware Quality
The sealing surface and hardware are critical. A machined-flat flange is best. Rubber gaskets can be prone to squeezing out if over-torqued, while cork or composite gaskets often provide a more reliable seal. Always check that included bolts are long enough to properly engage threads when passing through the pan flange, gasket, and transmission case.
FAQ
Will an aluminum transmission pan really keep my fluid cooler?
Can I use my old transmission filter with a new deeper pan?
Are all 700R4, 4L60, and 4L60E transmission pans the same?
Why do so many pans come with bolts that are too short?
Final Thoughts: The Verdict
For most users, the best 700r4 transmission pan winner is the A-Premium Plated Finned Aluminum Pan because it delivers exceptional cooling performance, complete kit inclusion, and reliable quality at a mid-range point. If you want maximum cooling capacity and a stealthy look, grab the JEGS Deep Aluminum Pan. And for a budget-friendly, no-leak replacement with a drain plug, nothing beats the CFR Performance Steel Pan.
